㉿Valve Socket

01㉿수도용 -기본형

견적서 다운로드 및 발송

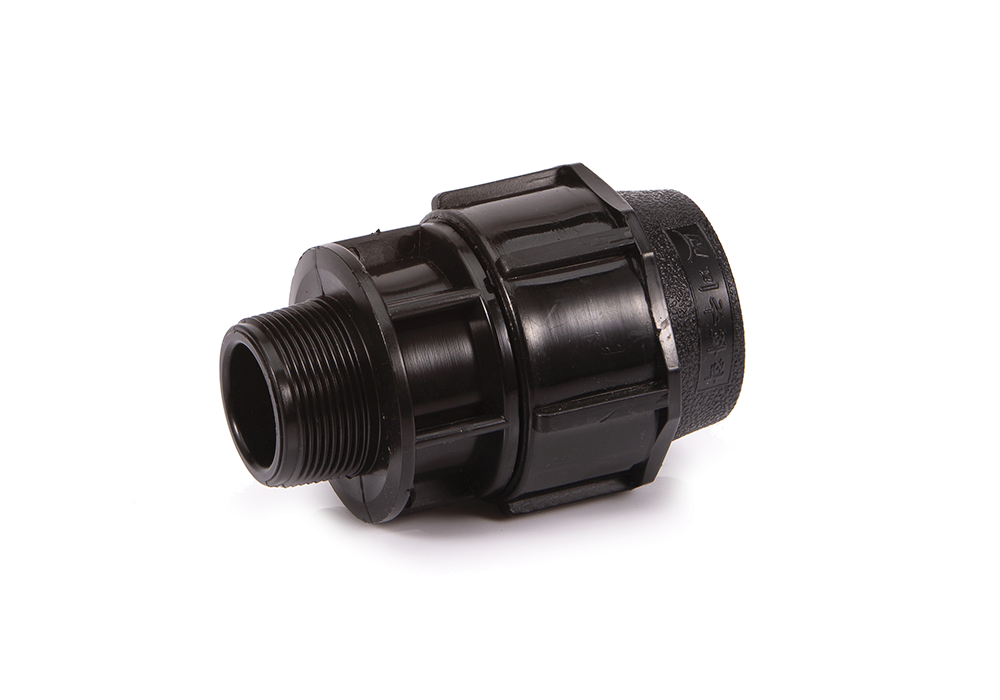

㉿ Valve Socket

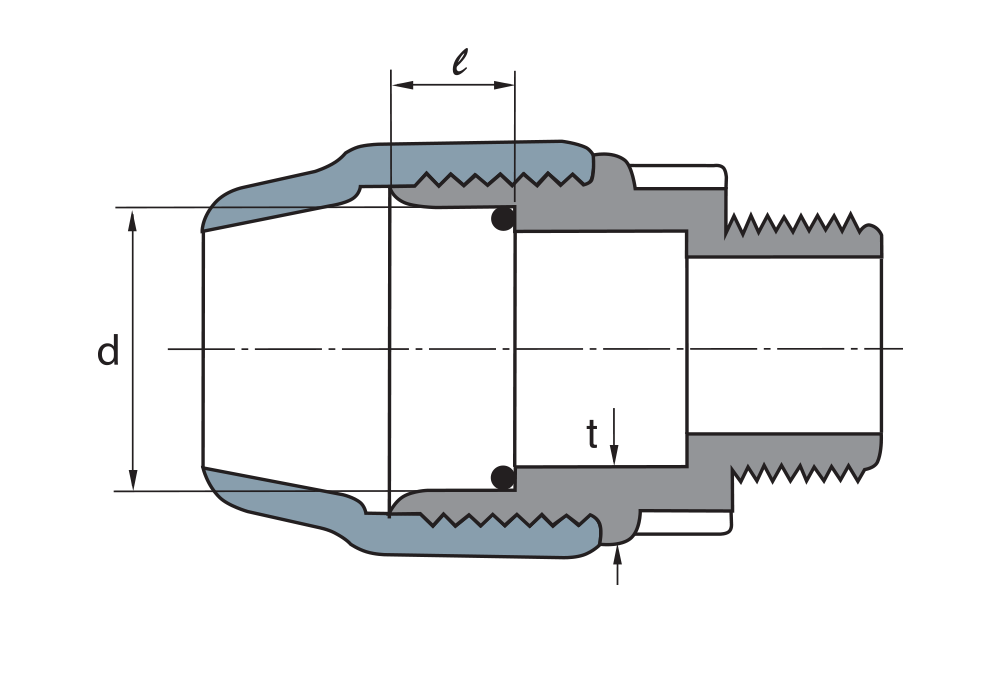

Specification

unit : mm

DN＼SIZE	d	ℓ	t	Code
20	20.5	30.0	2.1	E-KVS20
25	25.6	35.0	2.3	E-KVS25
32	32.6	40.0	3.0	E-KVS32
40	40.6	40.0	3.7	E-KVS40
50	50.7	43.0	4.6	E-KVS50
63	63.8	46.0	5.8	E-KVS63
75	76.2	50.0	6.8	E-KVS75
90	91.1	60.0	8.2	E-KVS90
110	111.2	85.0	10	E-KVS110
