Tee : Mechanical-joint PE Compression Fittings - Basic Type

Notifications

Customer support

02수도용-JIS

Tee

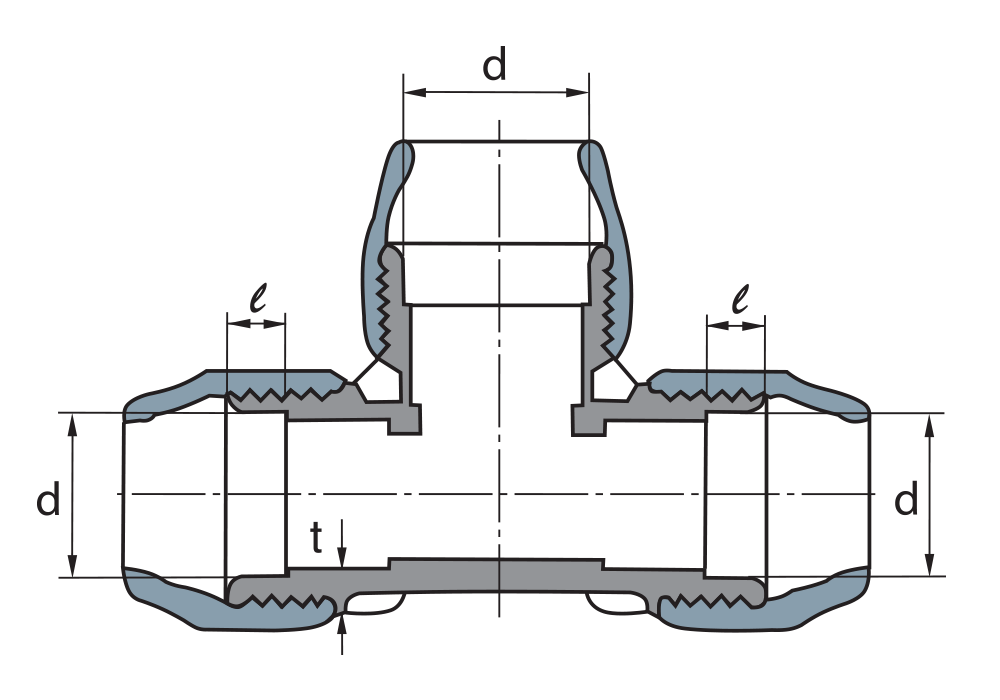

Specification

unit : mm

DN ＼ SIZE	d	ℓ	t	Code	DN ＼ SIZE	d	ℓ	t	Code
16	23.1	34.3	2.9	E-T16	50	62.8	49.5	5	E-T50
20	28.5	40.0	3.5	E-T20	65	78.4	51.2	7.5	E-T65
25	35.5	45.5	4.0	E-T25	75	91.5	62.0	7.9	E-T75
30	43.5	46.0	4.5	E-T30	100	116.4	88.4	9.9	E-T100
40	50.3	47.5	4.9	E-T40
