Reducing Tee

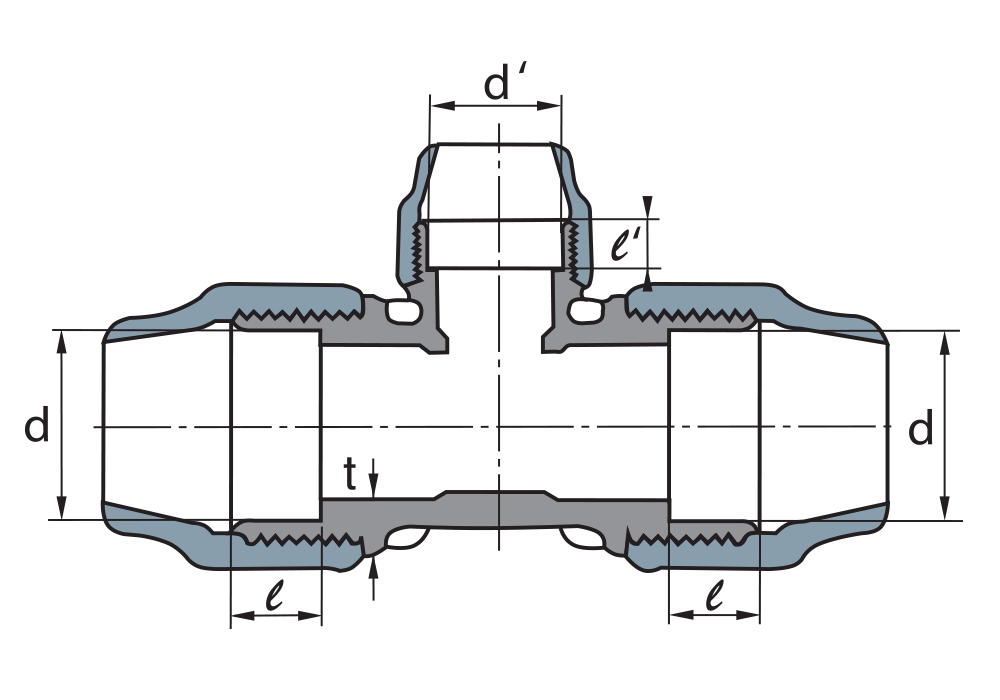

Specification

unit : mm

DN	ℓ	ℓ’	Code	DN	ℓ	ℓ’	Code
20x16	28.5	34.3	E-RT2016	50x30	49.5	46.0	E-RT5030
25x16	35.5	34.3	E-RT2516	50x40	49.5	47.5	E-RT5040
25x20	35.5	40.0	E-RT2520	65x50	51.2	49.5	E-RT6550
30x16	46.0	34.3	E-RT3016	75x16	62.0	34.3	E-RT7516
30x20	46.0	40.0	E-RT3020	75x20	62.0	40.0	E-RT7520
30x25	46.0	45.5	E-RT3025	75x25	62.0	45.5	E-RT7525
40x16	47.5	34.3	E-RT4016	75x30	62.0	46.0	E-RT7530
40x20	47.5	40.0	E-RT4020	75x40	62.0	47.5	E-RT7540
40x25	47.5	45.5	E-RT4025	75x50	62.0	49.5	E-RT7550
40x30	47.5	46.0	E-RT4030	75x65	62.0	51.2	E-RT7565
50x16	49.5	34.3	E-RT5016	100x50	88.4	49.5	E-RT10050
50x20	49.5	40.0	E-RT5020	100x65	88.4	51.2	E-RT10065
50x25	49.5	45.5	E-RT5025	100x75	88.4	62.0	E-RT10075

Note: For d.t specifications, refer to the tee specifications.
